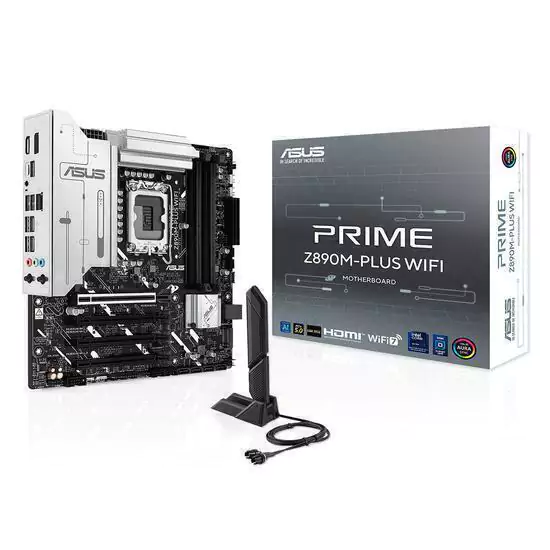

PLACA MÃE ASUS PRIME Z890M-PLUS WIFI, LGA 1851, DDR5, MATX

CPU

Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Memória

4 x DIMM slots, max. 192GB, DDR5

Support up to 8666+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP)

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

1 x DisplayPort**

1 x HDMI™ port***

1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

**Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

****Supports max. 4K@120Hz as specified in DisplayPort 1.4.

***** VGA resolution support depends on processors' or graphic cards' resolution.

****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Slots de Expansão

Intel® Core™ Ultra Processors (Series 2)*

1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2 x PCIe 4.0 x16 slots (support x1 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Armazenamento

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel® Z890 Chipset

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Rede

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

1x USB 10Gbps port (1 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A) **

Front USB (Total 7 ports)

1 x USB 5Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports**

* USB Type-C® power delivery output: max. 5V/3A

** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Áudio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Portas I/O no painel Traseiro

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

1x USB 10Gbps port (1 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet

3 x Audio jacks

1 x BIOS FlashBack™ button

Painel Interno

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

1 x 4-pin +12V CPU Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 5Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin Front Panel System header

1 x Thunderbolt™ (USB4®) header

Recursos Especiais

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- LANGuard

- Overvoltage Protection

- SafeSlot

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

Recursos de Software

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- Power Saving

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

TurboV Core

ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

NPU Boost (Intel K-series Processors only)

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Gerenciamento

WOL by PME, PXE

Acessórios

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

3 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide

Sistema Operacional

Windows 11  (22H2 & later)

Formato

mATX Form Factor
